2RB12-100331

2RB12H0N0750-075N001A0A04, 直线运动单元, 2RB, 滚珠丝杆 Drive, 滚珠 Guide, 0.005 毫米 Repeatability, 预加载, 580 毫米 Stroke, 单个标准滑块, 10 毫米 Travel Per Shaft Rev, Inline, 466.67 Maximum Linear Speed

Lead Time: 3 Weeks

each Costs associated with shipping, packaging, and import taxes/duty not included.

可安装在任意方向
高负载能力
低断面高度
预加载滚珠丝杠和Super Smart轴承配置提供了高刚度/刚性
可选耐腐蚀选项
可用波纹管选项

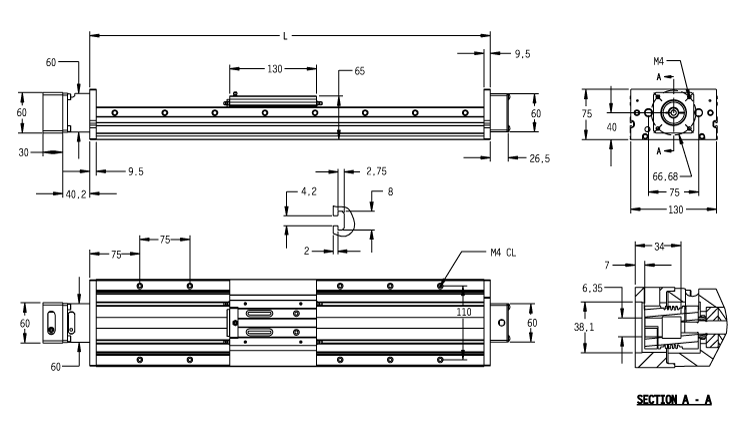

Dimensions

尺寸	价值
[L]	750 毫米
Smax（行程）	601 毫米
Travel Per Shaft Rev	10 毫米

Specifications

Specifications	价值
Carriage Type	单个标准滑块
Drive	滚珠丝杆
Guide	滚珠
Option, Bearing	Standard
Option, Hardware	Standard
Option, Profile Cover	No Cover
Option, Sensor	home sensor, PNP type
Option, Shaft Coating	Standard
Profile size (width × height)	130 x 40 mm
Screw Nut Type	预加载
Shaft Configuration	Inline
Shaft Orientation	Inline
Shaft Quantity	Double Shafts
Weight	10.8 kg
保护选项	Standard Protection

Performance

Performance	价值
Input speed, maximum	2800 转每分
Maximum Acceleration	9.8 m/s²
Maximum Linear Speed	466.67
Repeatability	0.005 毫米
