8103-448-013

8103-448-013

Download Full Catalog

8103-448-013

Can't find what you're looking for? Go to the Product Selector

8103-448-013

仅滚珠螺母, 精密样式, R-0308, 0.375 英寸 X 0.125 英寸, 无预加载, RH, 钢 , 500 磅力负载，动态

Lead Time: 15 Days

each Costs associated with shipping, packaging, and import taxes/duty not included.

仅螺母，丝杠单独销售
用于Thomson滚珠丝杠的螺母

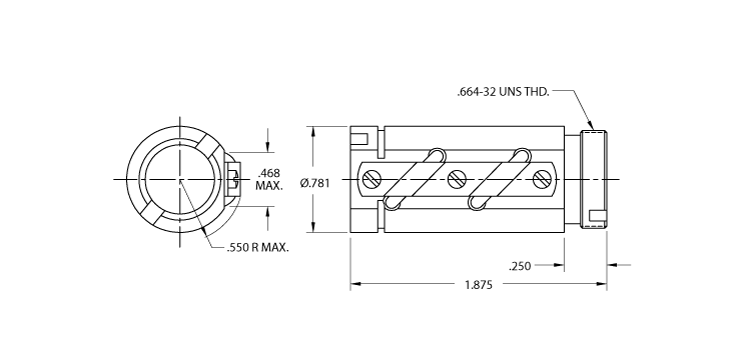

Dimensions

dimensions

尺寸	价值
[TH]	0.664-32
滚珠轴承直径	0.078 英寸
丝杠直径，标称	0.375 英寸
轴每转行程	0.125 英寸

Specifications

Specifications	价值
Model Code	R-0308LN
Temperature Max	300 °F
Weight	0.16 lb
材质	钢
负载锁定	With LoadLock
刮刷器	单独销售
回位类型	拾取手指
螺纹旋向	RH
循环数	2
预加载	无预加载
预加载方式	单独销售

Performance

performance graphic

performance graphic

performance graphic

Performance	价值
Load, Static, Maximum	4250 磅力
Torque to Raise 1 lb	0.35 oz-in
负载，动态	500 磅力
最大加速度	5 m/s²

Order Code
