8111-448-015

8111-448-015

Download Full Catalog

8111-448-015

Can't find what you're looking for? Go to the Product Selector

8111-448-015

仅滚珠螺母, 精密样式, 1.171 英寸 X 0.413 英寸, RH, 钢 , 3894 磅力负载，动态

Lead Time: 1 Day

each Costs associated with shipping, packaging, and import taxes/duty not included.

仅螺母，丝杠单独销售
用于Thomson滚珠丝杠的螺母

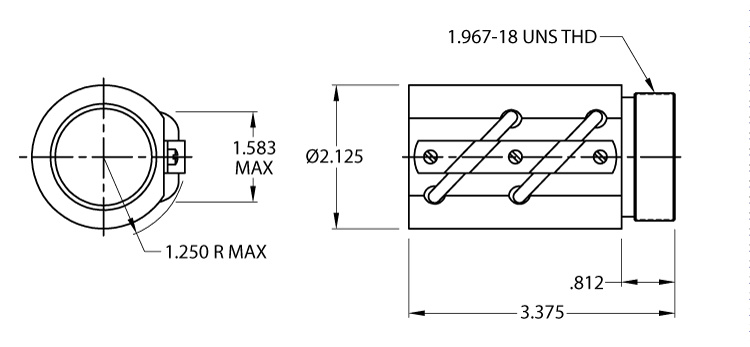

Dimensions

dimensions

尺寸	价值
滚珠轴承直径	0.281 英寸
丝杠直径，标称	1.171 英寸
轴每转行程	0.413 英寸

Specifications

Specifications	价值
Temperature Max	300 °F
Weight	1.9 lb
材质	钢
刮刷器	单独销售
回位类型	拾取手指
螺纹旋向	RH
循环数	2
预加载方式	单独销售

Performance

performance graphic

performance graphic

performance graphic

Performance	价值
Load, Static, Maximum	22917 磅力
Torque to Raise 1 lb	1.17 oz-in
负载，动态	3894 磅力
最大加速度	5 m/s²
