ASB24-XS

ASB24-XS

Download Full Catalog

ASB24-XS

Can't find what you're looking for? Go to the Product Selector

ASB24-XS

轴支撑, 末端支撑, 低截面, 铝合金, 配合使用 1.5 英寸直径轴

Lead Time: 1 Day

each Costs associated with shipping, packaging, and import taxes/duty not included.

直线导轨部件备件
-XS表示黑色阳极氧化。可考虑无-XS的零件编号。

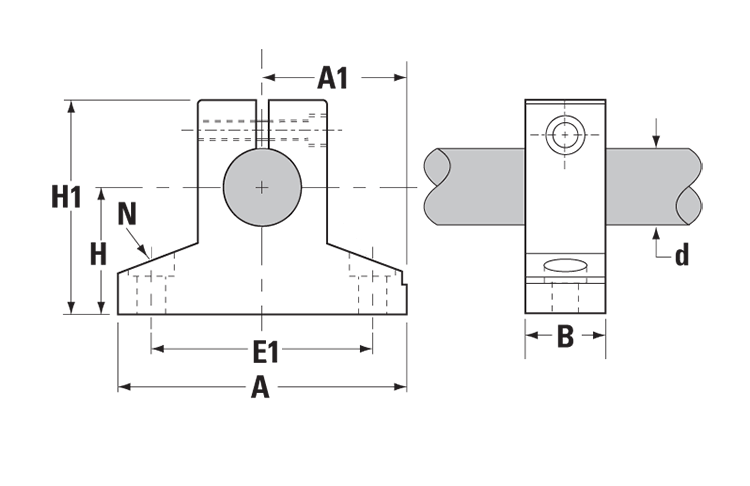

Dimensions

dimensions

尺寸	价值
[A]	4.75 英寸
[A1]	2.375 英寸
[A1] 公差	± 0.001 in
[B]	1.25 英寸
[d] 轴，标称直径	1.5 英寸
[E1]	3.5 英寸
[H]	2 英寸
[H] 公差	± 0.001 in
[H1]	3.5 英寸
[N]	0.34 in

Specifications

Specifications	价值
Support Style	低截面
Weight	1.2 lb
材质	铝合金

Performance
