Electrak HD直线执行器

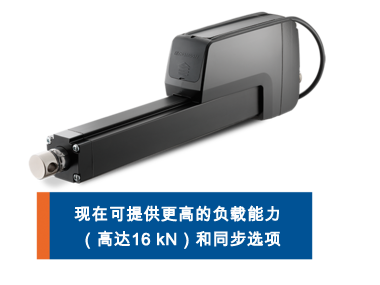

这些智能机电执行器配备板载电子元件，无需单独的控制系统。具有更高的功率（高达16 kN），开辟了更多液压转向电动应用的可能。此外，它们满足非常严格的OEM组件环境验收测试，包括IP69K。
观看视频：ElectrakHD直线执行器 - 强大、智能且坚固。
Thomson Linear Motion Optmized
让Thomson帮助您选择！
The synchronization option, available with Thomson Electrak HD linear actuators, enables Spika Design and Manufacturing to offer their customers work platforms with improved performance, functionality and safety.
VIDEO: Electrak HD Linear Actuators - Strong. Smart. Sturdy.
Thomson Product Line Specialist, Travis Gilmer, and Electrical Engineer, Chris Jones, walk you through the features of the Electrak HD and how it is stronger, smarter and sturdier than any linear actuator Thomson has developed to date.
Electrak HD规格：
| 性能规格 | HDxx-B017 | HDxx-B026 | HDxx-B045 | HDxx-B068 | HDxx-B100 | HDxx-B160 |
|---|---|---|---|---|---|---|
| 输入电压 (VDC) |
12VDC (tolerance: 9-16) 24VDC (tolerance: 18-32) |
12VDC (tolerance: 9-16) 24VDC (tolerance: 18-32) |
12VDC (tolerance: 9-16) 24VDC (tolerance: 18-32) |
12VDC (tolerance: 9-16) 24VDC (tolerance: 18-32) |
12VDC (tolerance: 9-16) 24VDC (tolerance: 18-32) |
12VDC (tolerance: 9-16) 24VDC (tolerance: 18-32) |
| 最小/最大行程 长度：mm |
100 / 1000 @ 50 ordering increments |
100 / 1000 @ 50 ordering increments |
100 / 1000 @ 50 ordering increments |
100 / 1000 @ 50 ordering increments |
100 / 1000 @ 50 ordering increments |
100 / 1000 @ 50 ordering increments |
| 最大动态负载： N (lbs) |
1700 (382) | 2600 (585) | 4500 (1012) | 6800 (1529) | 10000 (2248) | 16000 (3597) |
| 最大静态负载： kN (lbs) |
18 (4050) | 18 (4050) | 18 (4050) | 18 (4050) | 18 (4050) | 18 (4050) |
| 最大空载速度：mm/s（in/s） | 71 (2.8) | 40 (1.6) | 24 (0.94) | 18 (0.71) | 11 (0.43) | 7 (0.28) |
| 最大满载速度：mm/s（in/s） | 58 (2.28) | 32 (1.3) | 19 (0.75) | 14 (0.55) | 9 (0.35) | 5 (0.20) |
| 电流消耗 @ 空载/最大负载 |
@12V - 3 / 18 @24V - 1.5 / 9 |
@12V - 3 / 18 @24V - 1.5 / 9 |
@12V - 3 / 18 @24V - 1.5 / 9 |
@12V - 3 / 20 @24V - 1.5 / 10 |
@12V - 3 / 18 @24V - 1.5 / 9 |
@12V - 3 / 20 @24V - 1.5 / 10 |
| 满载占空比 @ 25 ºC (77 ºF) |
25% | 25% | 25% | 25% | 25% | 15% |
| 丝杠/螺母类型 | Ball / load lock ball nut | Ball / load lock ball nut | Ball / load lock ball nut | Ball / load lock ball nut | Ball / load lock ball nut | Ball / load lock ball nut |
| 工作温度： ºC (ºF) | -40 to +85 (-40 to +185) |
-40 to +85 (-40 to +185) |
-40 to +85 (-40 to +185) |
-40 to +85 (-40 to +185) |
-40 to +85 (-40 to +185) |
-40 to +85 (-40 to +185) |
| 防护等级： 静态/动态 |
IP67, IP69K / IP66 | IP67, IP69K / IP66 | IP67, IP69K / IP66 | IP67, IP69K / IP66 | IP67, IP69K / IP66 | IP67, IP69K / IP66 |
| 限制扭矩： br /> Nm (lbs) | 0 | 0 | 0 | 0 | 0 | 0 |
| 端隙（最大值）： mm (in) |
1.2 (0.047) | 1.2 (0.047) | 1.2 (0.047) | 1.2 (0.047) | 1.2 (0.047) | 1.2 (0.047) |
| 耐盐雾性（小时） | 200 | 200 | 200 | 200 | 200 | 200 |
| 执行器重量 (kg) |
6.5 @ 100 mm 11.0 @ 1000 mm |
6.5 @ 100 mm 12.2 @ 1000 mm |
6.5 @ 100 mm 12.2 @ 1000 mm |
6.5 @ 100 mm 12.2 @ 1000 mm |
6.7 @ 100 mm 12.4 @ 1000 mm |
7 @ 100 mm 9.4 @ 500 mm |
Electrak HD特点：
- 内置J1939 CAN总线
- 同步选项
- 过载保护
- 电子跳脱点校准
- 行程末端，电压，电流监控
- 标准防旋转驱动
- 集成手动超控输入
- 符合CE、RoHS、REACH（EU）标准
- 板载电子元件
- 动态/抱闸
- 温度监测
- 温度补偿
- 飞线
- 前/后U形夹选件
Electrak HD选件特点：
- EXX：仅限监测系统（EMS）
- ELX：EXX+行程末端指示输出
- EXP：EXX+模拟位置输出
- EXD：EXX+数字位置输出
- ELP：ELX+模拟位置输出
- ELD：ELX+数字位置输出
- Lxx：EXX+低电平信号开关
- LLX：EXX+LXX+行程末端输出
- LXP：EXX+LXX+模拟位置输出
- CNO：CAN总线J1939控制+开环速度控制
Electrak HD应用：
- 单用户维护/维修
- 快速连接
- 多用途车
- 道路施工工地设备
- 建筑工地设备
- 铁路设备
- 物流系统
- 应急车辆
- 救援车辆
- 开关装置
