0215050245

Ball Nut

Ball Nut, 25 mm X 10 mm, Wiper Included, Round, No Safety Feature, 滚道, 13200 N

仅螺母
经过质量检测，确保可靠的性能
具有可靠的精度和可重复性，且价格实惠

尺寸

Dimension	Value
D1	40.00 mm (1.575 in)
D8	3.00 mm (0.118 in)
L2	45.00 mm (1.772 in)
L8	7.50 mm (0.295 in)
L9	12.50 mm (0.492 in)
L10	20.00 mm (0.787 in)

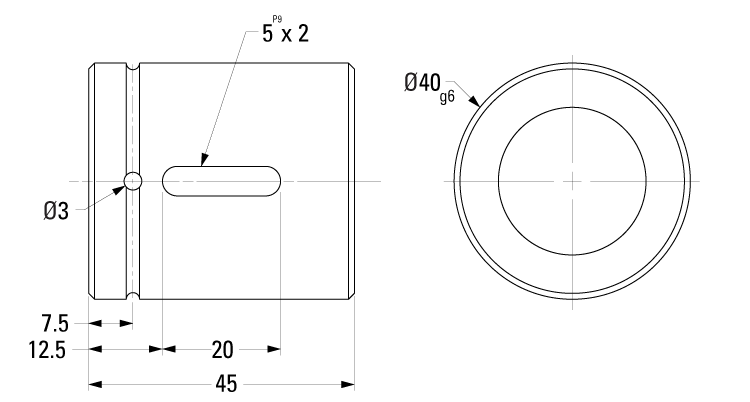

dimensions

Dimension	Value
D1	40.00 mm (1.575 in)
D8	3.00 mm (0.118 in)
L2	45.00 mm (1.772 in)
L8	7.50 mm (0.295 in)
L9	12.50 mm (0.492 in)
L10	20.00 mm (0.787 in)

规格

Specification	Value
Diameter	25 mm
导程	10.0 mm
Nut Material	Alloy Steel
Nut Style	KGM
Wiper	Included
Screw Part Number	0205000273-RL6000
Number Of Starts	2
Total Weight	0.240 kg

性能

Performance

Performance

Performance

Performance	Value
Load, Dynamic	13,200 N (2,967 lbf)
Load, Static	25 kN (5,688 lbf)
