Thomson Linear Motion Optmized
Compact Linear Systems
Take the guesswork out of specifying multiple components for your linear motion designs. Thomson compact linear systems address the need for thrust and bearing support in a single, small-scale unit for space-conscious applications. Whether you opt for one of our three standard architectures (see below) or work with our engineers on a “from scratch” solution, your application requirements will determine the selection and sizing of your system components.
标准紧凑型直线系统

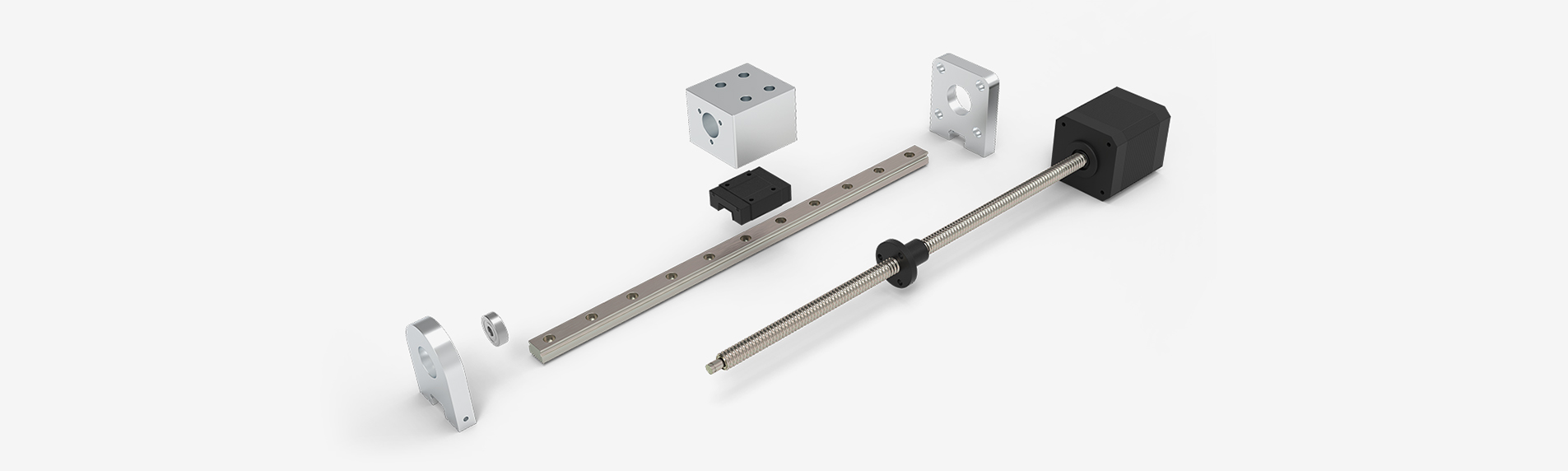

紧凑型直线系统的结构
| Basic Specifications | |||
|---|---|---|---|
| Lead Screw | |||
| Material | 300 Series Stainless Steel | ||
| Standard Coating1 | None | ||
|
Standard Lead Accuracy
[in./ft. (µm/300 mm)]
|
0.010 (250) | ||
|
Precision Lead Accuracy
[in./ft. (µm/300 mm)]
|
0.003 (75) | ||
|
Straightness
[in./ft. (µm/300 mm)]
|
0.005 (125) | ||
| Lead Nut | |||
| Standard Material | Internally lubricated acetal | ||
|
Nut Efficiency2
[%]
|
Up to 85 | ||
|
Typical Linear Travel Life
[in. (km)]
|
10 x 106 (250) | ||
|
Positional Repeatability with Standard Nut3
[in. (mm)]
|
0.005 to 0.010(0.127 to 0.254) | ||
|
Positional Repeatability with Anti-Backlash Nut4
[in. (mm)]
|
<0.002 (0.051) | ||
| Motor | |||
| Frame Size | NEMA 14 | NEMA 14 | NEMA 14 |
|
Step Size
[°]
|
1.8 | ||
|
Concentricity of Mounting Pilot to Shaft
[in. (mm)]
|
0.003 (0.08) TIR | ||
|
Perpendicularity of Shaft to Mounting Face
[in. (mm)]
|
0.003 (0.08) TIR | ||
|
Max. Case Temperature
[°F (°C)]
|
176 (80) | ||
|
Storage Temperature
[°F (°C)]
|
-4 to 122 (-20 to 50) | ||
|
Ambient Temperature
[°F (°C)]
|
-4 to 122 (-20 to 50) | ||
|
Max. humidity (non-condensing)
[%]
|
85 | ||
|
Magnet Wire Insulation
[°F (°C)]
|
Class B 130 (266) | ||
| Insulation Resistance | @ 500 VDC [Mohm] 100 | ||
| Dielectric Strength | for 1 min. [Vac] 500 | ||
| Assembly | |||
|
Max. Backlash with Standard Nut5
[in. (mm))]
|
0.010 (0.25) | ||
|
Operating Temperature
[°F (°C)]
|
15 to 125 (-10 to 50) | ||
- Contact Thomson for optional lead screw coatings.
- Depends on lead, nut material and lubrication.
- Depends on nut, load and orientation.
- For best positional repeatability, load should be kept well bellow design system.
- Nut fit can be adjusted depending on backlash requirements.
Compact Linear System Highlights:
- Choose from three standard architectures or build a “from scratch” system.
- Mounting blocks can be machined to virtually any shape or size.
- Virtual design consultations are like having a linear motion expert by your side as you build your solution.
- Systems can be produced and delivered quickly due to back-end modularity processes being automated.
- A 3D model of your system is made available to you in real time or typically within one business day.
Compact Linear Applications:
- Medical devices
- Security/Military
- Packaging
- Semiconductors
- 3D Printers
VIDEO: Tech Tips: How to Choose Your Ideal Compact Linear System
Thomson compact linear systems can be purchased in pre-designed configurations, or you can fully customize them at no additional cost. This video shows you a couple ways to build the best system for your linear motion design.
