5709582
Can't find what you're looking for? Go to the Product Selector

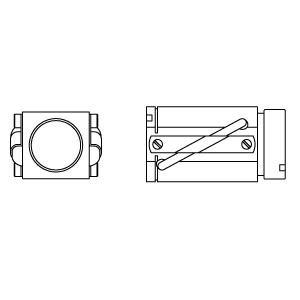

*BALLNUT,0.500X0.500,NP,RH
- 停产
- 停产
- See Related product for a similar diameter and lead product. Review product specifications as there are design differences. New mating screw would be needed.
- 停产

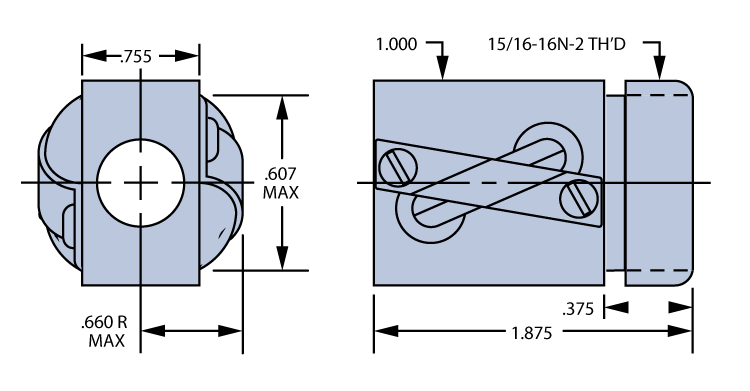

| 尺寸 | 价值 |
|---|---|
| [TH] | 15/16-16 |
| 丝杠直径，标称 | 0.5 英寸 |
| 轴每转行程 | 0.5 英寸 |
| Performance | 价值 |
|---|---|
| Load, Static, Maximum | 4131 磅力 |
| 负载，动态 | 786 磅力 |
| 最大加速度 | 5 m/s² |
