BALLNUT,0.631X0.200,PL,RH, 停产

停产
停产
See Related product for a similar diameter and lead product. Review product specifications as there are design differences. New mating screw would be needed.
停产

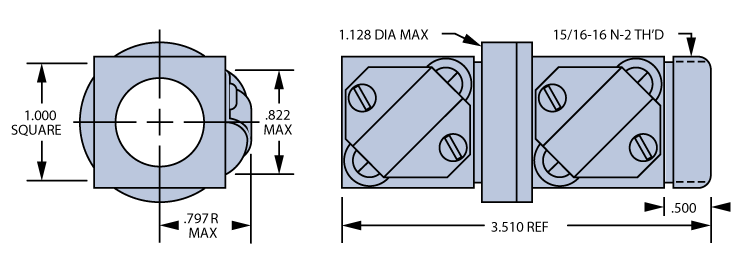

Dimensions

dimensions

尺寸	价值
丝杠直径，标称	0.631 英寸
轴每转行程	0.2 英寸

Specifications

Specifications	价值
Temperature Max	300 °F
Weight	0.65 lb
材质	钢
刮刷器	单独销售
回位类型	拾取手指
螺纹旋向	RH
预加载	双螺母预加载
预加载方式	单独销售

Performance

performance graphic

performance graphic

performance graphic

Performance	价值
Load, Static, Maximum	6384 磅力
负载，动态	778 磅力
最大加速度	5 m/s²
