7833273

QF 40, 支座, 简易, Base or Flange Mount, QF 样式, 40 毫米 Inside Diameter; 配合使用 1.750 in 滚珠丝杠

Lead Time: 2500 Days

each Costs associated with shipping, packaging, and import taxes/duty not included.

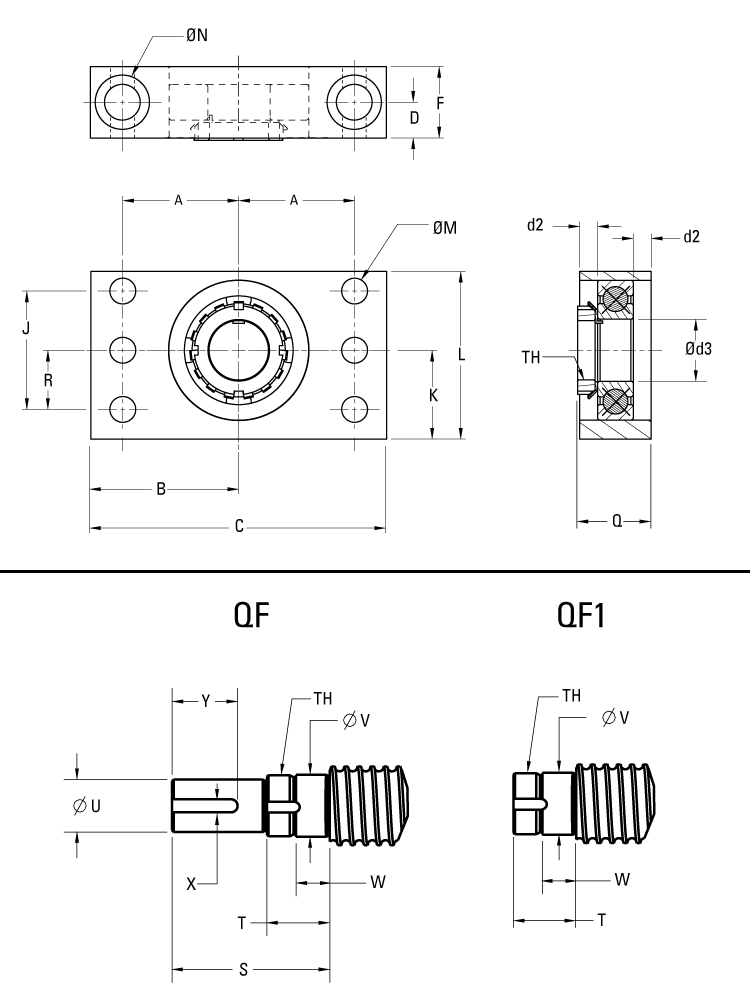

Dimensions

尺寸	价值
[A]	2.937 英寸
[B]	3.75 英寸
[C]	7.5 英寸
[D]	0.906 英寸
[d2]	0.453 英寸
[d3] Bearing Journal Diameter, Recommended	40 毫米
[F]	1.811 英寸
[J]	3 英寸
[K]	2.25 英寸
[L]	4.25 英寸
[M]	6x .656 in dia
[N]	2x .906 Thru, 1.375 C-Bore x 2.25 Dp
[Q]	1.869 英寸
[R]	1.5 英寸
[S]	3.65 英寸
[T]	1.46 英寸
[TH]	N-08
[U]	1.3750/1.3740 in
[V]	1.5752/1.5747 in
[W]	0.906 英寸
[X]	0.313 英寸
[Y]	1.875 英寸

Specifications	价值
Bearing Trade Number	6308
Retainer	N-08
Temperature Max	300 °F
Use With Screw, Nominal Diameter	1.750 in
Weight	9.7 lb
预加载方式	简易

Performance	价值
Load, Thrust rating	Floating Bearing blocks do not resist axial loads
