8130-448-007 - 已替代产品

Name: 8130-448-007
Price: null

产品 8130-448-007 现已被替代。我们建议更换为 SBN10202. 如何任何疑问，请联系我们。

Suggested replacement has similar form/fit/function, but not a drop-in replacement or interchangeable. Review specifications of replacement item to ensure it will meet application requirements.

下载完整产品目录

打印技术规格

没有找到想要的产品？请使用产品选择工具

8130-448-007

Ball Nut

Ball Nut, 3.000 in X 0.660 in, Wiper Included, Round, With Safety Feature, Non-Preloaded, 捡拾齿, 44316 lbf

仅螺母
经过质量检测，确保可靠的性能
具有可靠的精度和可重复性，且价格实惠

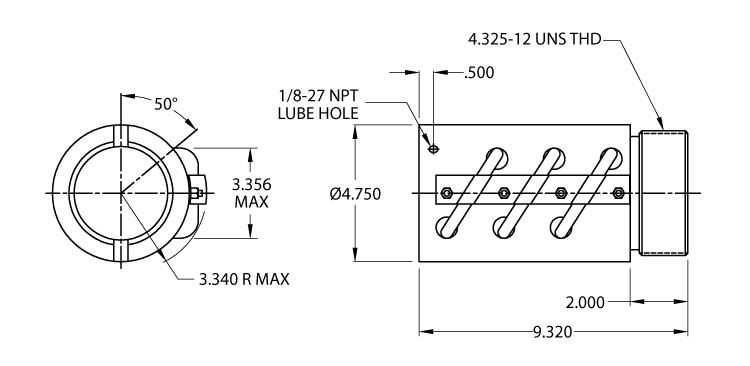

尺寸

Dimension	Value
Unit Of Measure	All length values in: inches

Dimension	Value
Unit Of Measure	All length values in: inches

规格

Specification	Value
Diameter	3.000 in
导程	0.660 in
Nut Material	Alloy Steel
Nut Style	Precision
Wiper	Included
Screw Part Number	190-9140
Number Of Starts	1
Total Weight	26.00 lbs

性能

Performance	Value
Load, Dynamic	197,127 N (44,316 lbf)
Load, Static	1,441,001 N (323,950 lbf)
