ASBM08

Can't find what you're looking for? Go to the Product Selector

ASBM08

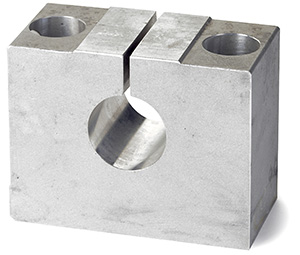

轴支撑, 末端支撑, 低截面, 铝合金, 配合使用 8 毫米直径轴

Lead Time: 1 Day

each Costs associated with shipping, packaging, and import taxes/duty not included.

轴支撑简化了Thomson 60 Case导向轴的安装。Thomson 60 Case导向轴的用户应当考虑使用这些轴支撑

Dimensions

dimensions

尺寸	价值
[A]	32 毫米
[A1]	16 毫米
[A1] 公差	± 0.30 mm
[B]	18 毫米
[d] 轴，标称直径	8 毫米
[E1]	22 毫米
[E1] 公差	± 0.30 mm
[F1]	9 毫米
[H]	15 毫米
[H] 公差	± 0.025 mm
[H1]	28 毫米
[N]	3.50 mm

Specifications

Specifications	价值
Support Style	低截面
UPC编号	662486103066
Weight	0.04 kg
材质	铝合金

Performance
