D312719

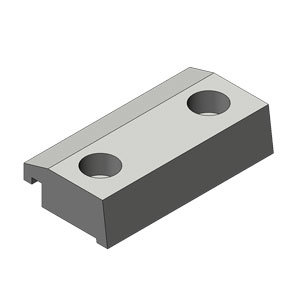

直线运动单元, MF/G07: MOUNTING KIT WITH 2 CLAMPS /4 MC6S M8X20

each Costs associated with shipping, packaging, and import taxes/duty not included.

Kit includes 2 bolts and 2 clamps
Can be used to mount one unit to another to create a Multi axis assembly

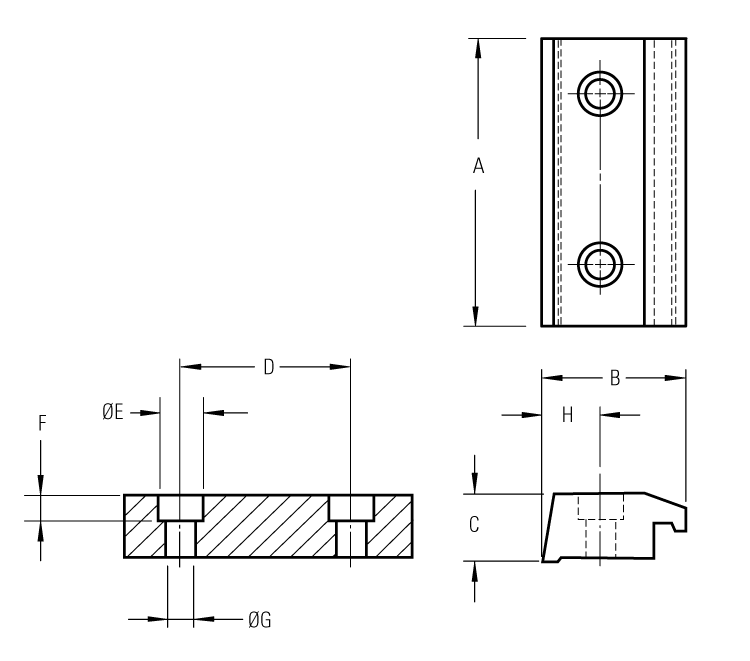

Dimensions

dimensions

尺寸	价值
[A]	75 毫米
[B]	28.5 毫米
[C]	15 毫米
[D]	60 毫米
[E]	14 毫米
[F]	8.5 mm
[G]	8.5 毫米
[H]	11 毫米

Specifications

Specifications	价值
Use with	M75
