ECT09-10001

执行器，精密, ECT90, ECT09-I09B03PB2510-1220XN00XX, 3 phase AC motor (3 x 400 Vac), Belt Gear Drive, Parallel, 1220 毫米 Stroke, 10 毫米 Travel Per Shaft Rev, with 230 Vac Brake, 9750 N

Lead Time: 2500 Days

each Costs associated with shipping, packaging, and import taxes/duty not included.

带制动器的3相异步交流电机
挤压成型阳极电镀铝合金套管
阳极氧化铝合金外壳
硬铬钢延长管
坚固、可靠
标配IP65，可选用冲洗防护型
可安装在任意方向
安装附件符合适用的液压缸标准
广泛的选项和附件

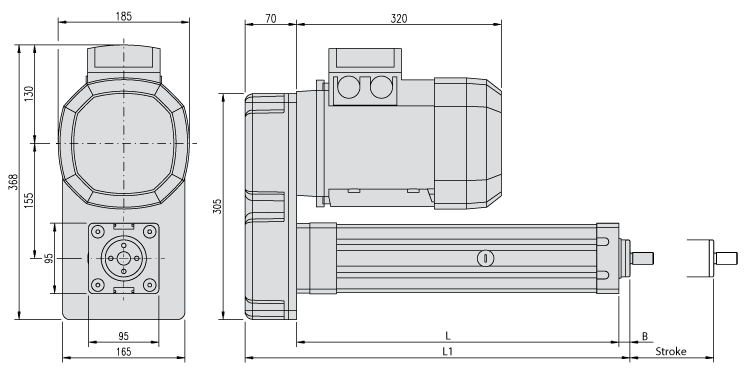

Dimensions

尺寸	价值
[B]	15 毫米
[L]	1415 毫米
[L1]	1500 毫米
Smax（行程）	1220 毫米
Travel Per Shaft Rev	10 毫米
丝杠直径，标称	25 毫米

Specifications

Specifications	价值
Adapter Options, Rod End	Male thread, M16x1.5
Brake	with 230 Vac Brake
Cylinder Mounting Options	No Mounting option included
Drive Type	Belt Gear Drive, Parallel
Magnetic Sensor NC	0
Magnetic Sensor NO	0
Motor Type	3 phase AC motor (3 x 400 Vac)
Profile Size	90 x 92 mm
Resolver	No Resolver
Weight	50.3 kg
传动比：1	3
防护等级	IP65
丝杠类型	滚珠丝杆

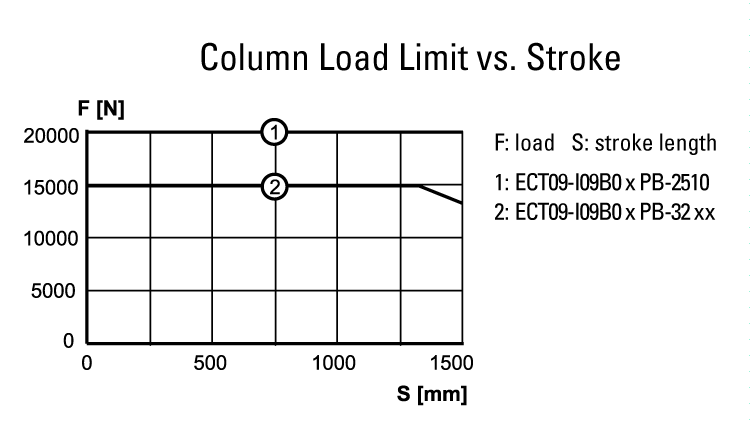

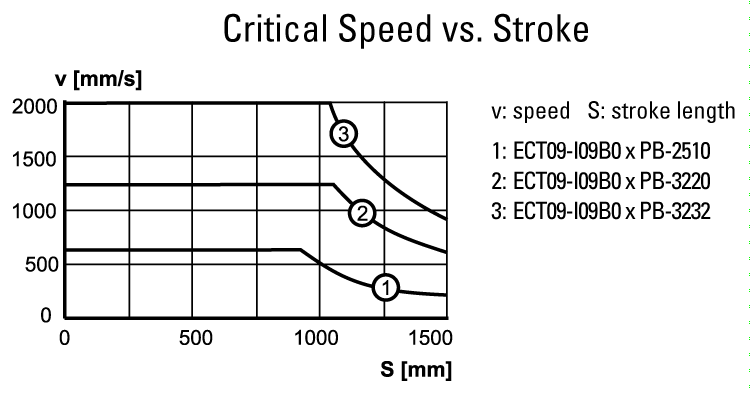

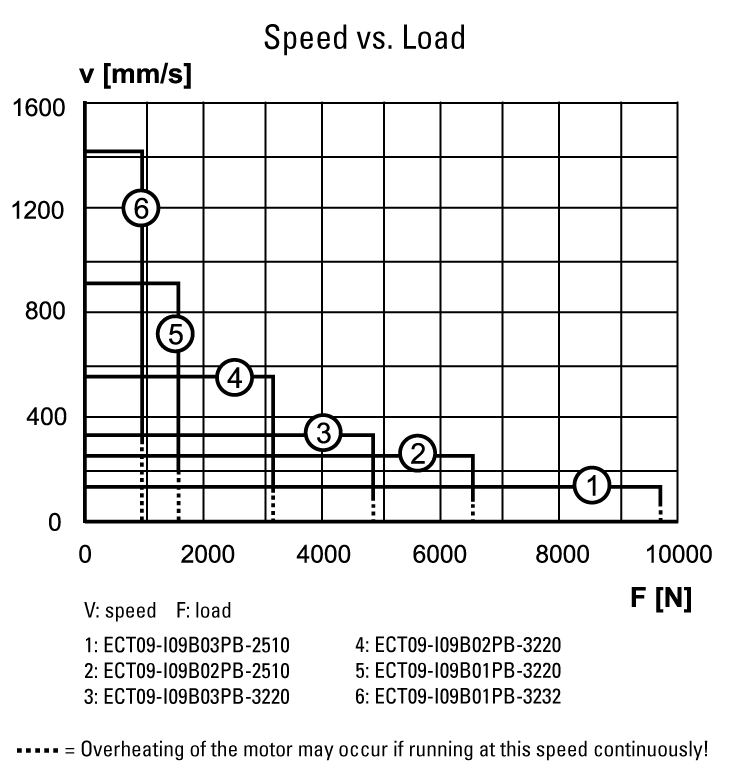

Performance

Performance	价值
Maximum Linear Speed	160 毫米每秒
Repeatability	0.05 毫米
负载，动态	9750 N
