MLN11A05-180200S04000N-C1A0-XXX - 已替代产品
产品 MLN11A05-180200S04000N-C1A0-XXX 现已被替代。 我们建议更换为 MLN11A10-180200S04000N-C1A0-XXX.
Suggested replacement has similar form/fit/function, but features a different motor current rating. Review specifications of replacement item to ensure it will meet application requirements.
没有找到想要的产品？请使用产品选择工具
Rotating Nut, NEMA 11, Single stack, 0.510 Amp Ø0.1875 in x 0.200 in lead screw, 4.000 in length, Standard accuracy, C1 front end machining, A0 back end machining
*大数量订单的交货期可能延长。所示交货期为工作日。
最小值: 1.26 in 最大值: 8.0 in
- A hybrid stepper motor and a precision lead screw together in one compact envelope.
- Higher torque density than the competition.
- Improved efficiency.
- Reduced noise.
| Dimension | Value |
|---|---|
| Ls | 101.60 mm (4.00 in) |
| Lm | 32.00 mm (1.260 in) |
| L3F | 6.35 mm (0.25 in) |
| THDF | #4-40 |

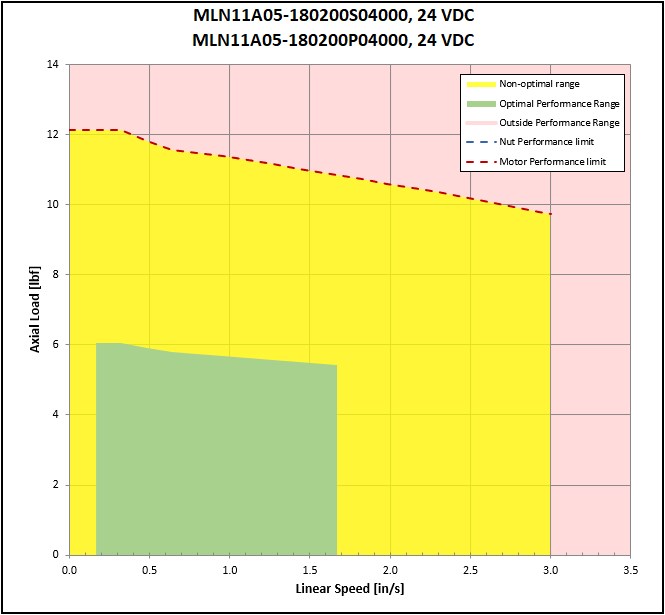

| Performance | Value |
|---|---|
| Max Dynamic Load @ 12v | 25.8 N / 5.8 lbf |
| Max Dynamic Load @ 24v | 27.1 N / 6.1 lbf |
| Max Dynamic Load @ 40v | 27.6 N / 6.2 lbf |
| Dynamic Load at Max Speed @ 12v | 20.5 N / 4.6 lbf @ 42.42 mm/s / 1.67 in/s |
| Dynamic Load at Max Speed @ 24v | 23.6 N / 5.3 lbf @ 42.42 mm/s / 1.67 in/s |
| Dynamic Load at Max Speed @ 40v | 24.9 N / 5.6 lbf @ 42.42 mm/s / 1.67 in/s |
| Recommended Max Axial Load | 89 N / 20 lbf |
| Max Case Temperature | 60 °C / 140 °F |
| Operating Temperature Max | 52 °C / 125 F |
| Operating Temperature Min | -9 °C / 15 F |
