MLN11A05-M04040P10200N-C5A0-XXX
Can't find what you're looking for? Go to the Product Selector
Motorized, NEMA 11, 0.00079 英寸 Travel/Step, Single Stack, 0.51 A, Rotating Nut, Nut integral to motor, 4 X 4 毫米 梯形丝杠
- 混合式步进电机和精密梯形丝杠共同集成在紧凑封装中。
- 比竞争对手更高的力矩密度
- 更高的效率。
- 噪音更低。
| 尺寸 | 价值 |
|---|---|
| [L1] Screw Length | 102 毫米 |
| [M] | 1.26 英寸 |
| End Machining, Front, [T] | M2.5X0.45 Thread X 6.35 mm |
| End Machining, Rear | No-Machining |
| Screw, Lead | 4 毫米 |
| Screw, Nomial Diameter | 4 毫米 |
| Travel/Step | 0.00079 英寸 |
| 丝杠跳动 | 0.007 in/ft |
| 丝杠直线度 | 0.005 in/ft |

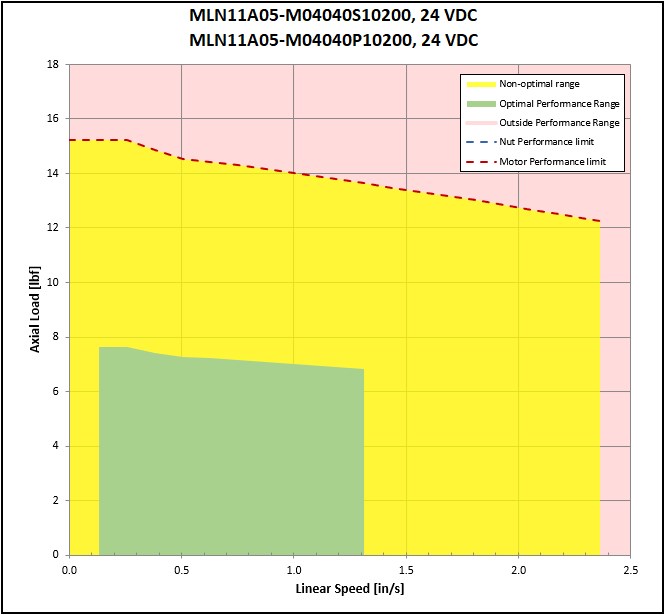

| Performance | 价值 |
|---|---|
| Load, Max @ Max Speed | 1.31 磅力 |
| Load, Max @ Min Speed | 7.6 磅力 |
| Max Speed (Recommended) | 6.8 英寸每秒 |
| Motor, Step Angle | 1.8 ° |
| Screw, Lead Accuracy | 0.003 in/ft |
| Travel/Step | 0.00079 英寸 |
