MLS14A13-M10050P40600N-A000-RS3
没有找到想要的产品？请使用产品选择工具
旋转丝杠
Rotating Screw, NEMA 14, Single stack, 1.350 Amp Ø10.000 mm x 5.000 mm lead screw, 406.000 mm length, Precision accuracy, A0 front end machining, RSF3700
Lead Time:
Contact Factory*
*大数量订单的交货期可能延长。所示交货期为工作日。
梯形丝杠长度:
最小值: 25.4 mm 最大值: 812.8 mm
配置编码器
- 集混合式步进电机和精密梯形丝杠于一身，且外形紧凑。
- 力矩密度比竞争产品更高。
- 效率更高。
- 噪音更低。
| Dimension | Value |
|---|---|
| Ls | 406.00 mm (15.98 in) |
| Lm | 34.04 mm (1.340 in) |
| Ln | 25.40 mm (1.000 in) |
| AN | 16.00 mm (0.63 in) |
| BN | 25.40 mm (1.00 in) |
| DN | 31.75 mm (1.25 in) |
| EN | 3.56 mm (0.14 in) |
| FN | 4.83 mm (0.19 in) |
| IN | 10.41 mm (0.41 in) |
| BCDN | 22.23 mm (0.88 in) |

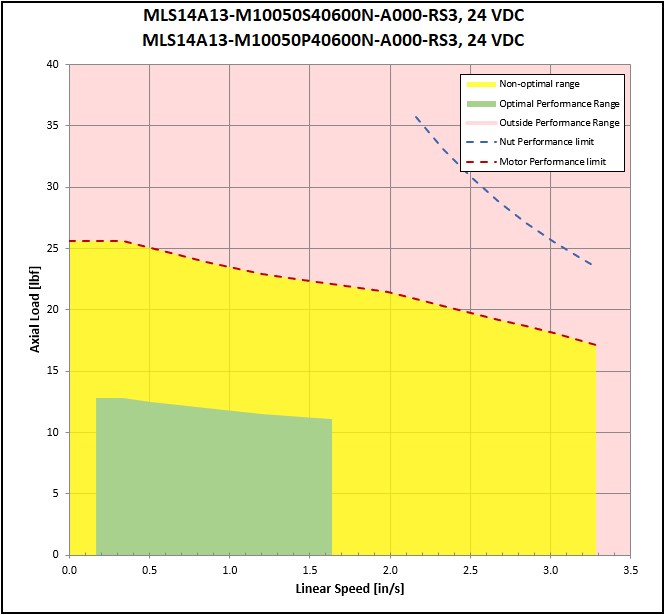

| Performance | Value |
|---|---|
| Max Dynamic Load @ 12v | 54.7 N / 12.3 lbf |
| Max Dynamic Load @ 24v | 56.0 N / 12.6 lbf |
| Max Dynamic Load @ 40v | 56.5 N / 12.7 lbf |
| Dynamic Load at Max Speed @ 12v | 36.5 N / 8.2 lbf @ 41.66 mm/s / 1.64 in/s |
| Dynamic Load at Max Speed @ 24v | 47.2 N / 10.6 lbf @ 41.66 mm/s / 1.64 in/s |
| Dynamic Load at Max Speed @ 40v | 50.3 N / 11.3 lbf @ 41.66 mm/s / 1.64 in/s |
| Recommended Max Axial Load | 223 N / 50 lbf |
| Max Case Temperature | 176 °F / 80 C |
| Minimum Linear Travel Life | 127,000,000 mm / 5,000,000 in |
| Backlash Type | Standard Backlash |
| Operating Temperature Max | 122 °F / 50 C |
| Operating Temperature Min | 14 °F / -10 C |
