R54-3

R54-3

Download Full Catalog

R54-3

Can't find what you're looking for? Go to the Product Selector

R54-3

FLANGE

Lead Time: 7 Days

each Costs associated with shipping, packaging, and import taxes/duty not included.

法兰提供了一种将负载与滚珠丝杠垂直和同轴安装的简单、低成本方法
查看尺寸图，了解零件编号的特定尺寸

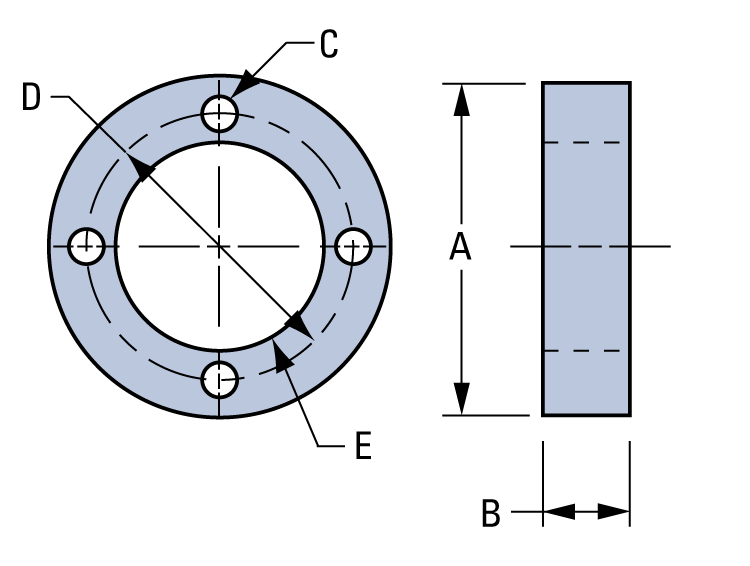

Dimensions

dimensions

尺寸	价值
[A]	4.37 英寸
[B]	0.53 英寸
[C]	0.397 (4)
[D]	3.44 英寸
[TH]	1.967-18

Specifications

Specifications	价值
Temperature Max	300 °F
Weight	6.5 kg
材质	钢

Performance

Order Code

Get Quote
