5708278
Can't find what you're looking for? Go to the Product Selector

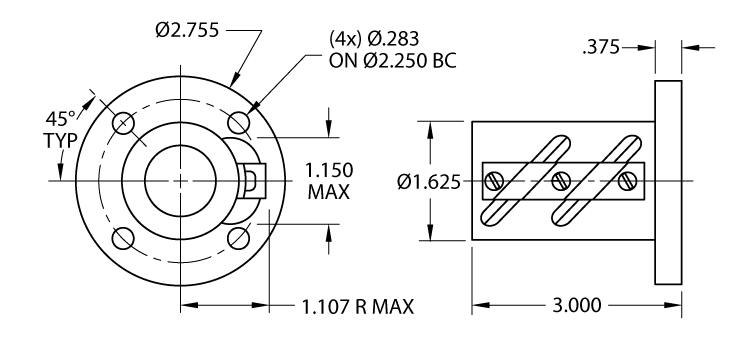

BALLNUT,1.000X0.250,NP,RH,C2,FLG, 停产
- 停产
- 停产
- See Related product for a similar diameter and lead product. Review product specifications as there are design differences. New mating screw would be needed.
- 停产
| 尺寸 | 价值 |
|---|---|
| 丝杠直径，标称 | 1 英寸 |
| 轴每转行程 | 0.25 英寸 |
| Performance | 价值 |
|---|---|
| Load, Static, Maximum | 27826 磅力 |
| 负载，动态 | 3224 磅力 |
| 最大加速度 | 5 m/s² |
