DD24-20B5-20-497

执行器, Electrak 10, 24 直流电压伏特, 508 毫米, Cable length 165 毫米, Connector, 特别

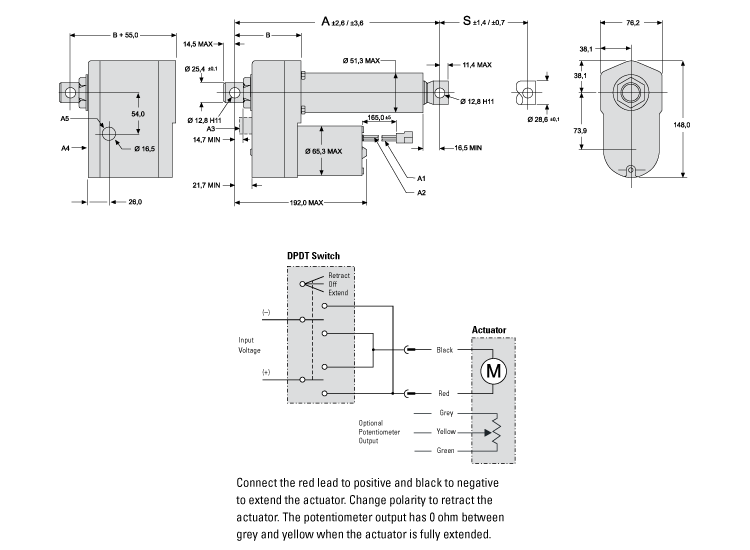

Dimensions

尺寸	价值
[A]	759.5 毫米
[S]	508 毫米

Specifications	价值
Anti-rotation	否
Brake	集成抱闸
Cable length	165 毫米
Connection	Connector
Connector Type	AMP connector with housing p/n 180908-5 and male terminals p/n 42098-2
Manual Override	Optional
Motor Control	None
Protection, End-of-stroke	Clutch
Protection, Overload	Clutch
Temperature Max	65 °C
Temperature Min	-15 °F
Weight	6.4 kg
材质	铜；钢；锌；铝合金；塑料
齿轮减速	20:1
电压	24 直流电压伏特
额定行程	500 毫米
防护等级	IP66
丝杠类型	滚珠丝杆

Performance	价值
Duty Cyle	25 %
Restraining Torque	100 in-lbs
